Version: *1.3.23.0
Frequency: Consistently
Severity: High
(Low - quality of life, workflow optimization, rare enough to not impact production, etc…
High - critical but workarounds are available, important feature not working as expected, frequent enough to impact production
Blocker - prevents from working on the project, prevents from releasing the product)
Marketplace package name: if applicable
Context: What package? When editing or mounted from Community? In main menu or in flight? etc…
Similar MSFS 2020 issue: insert url here if applicable
Bug description:
In Blender 4.2 there is a requirement to have a Vertex Color (Color Attribute) node in the node path for both the base Color and the Alpha. There is one for Base Color, however there is not one for the Alpha in the Alpha Group.
If the Vertex Color node is not in the path you get a Warning.
example:
14:34:50 | WARNING: The active Vertex Color will not be exported, as it is not used in the node tree of the material
This warning also appears in the Base Color path, but this is due to a Blender/Khronos feature that cannot traverse two Groups - So the Base Color path cannot find the vertex node either. You may need to merge the two groups “Base Color Group” and “Apply AO Group”

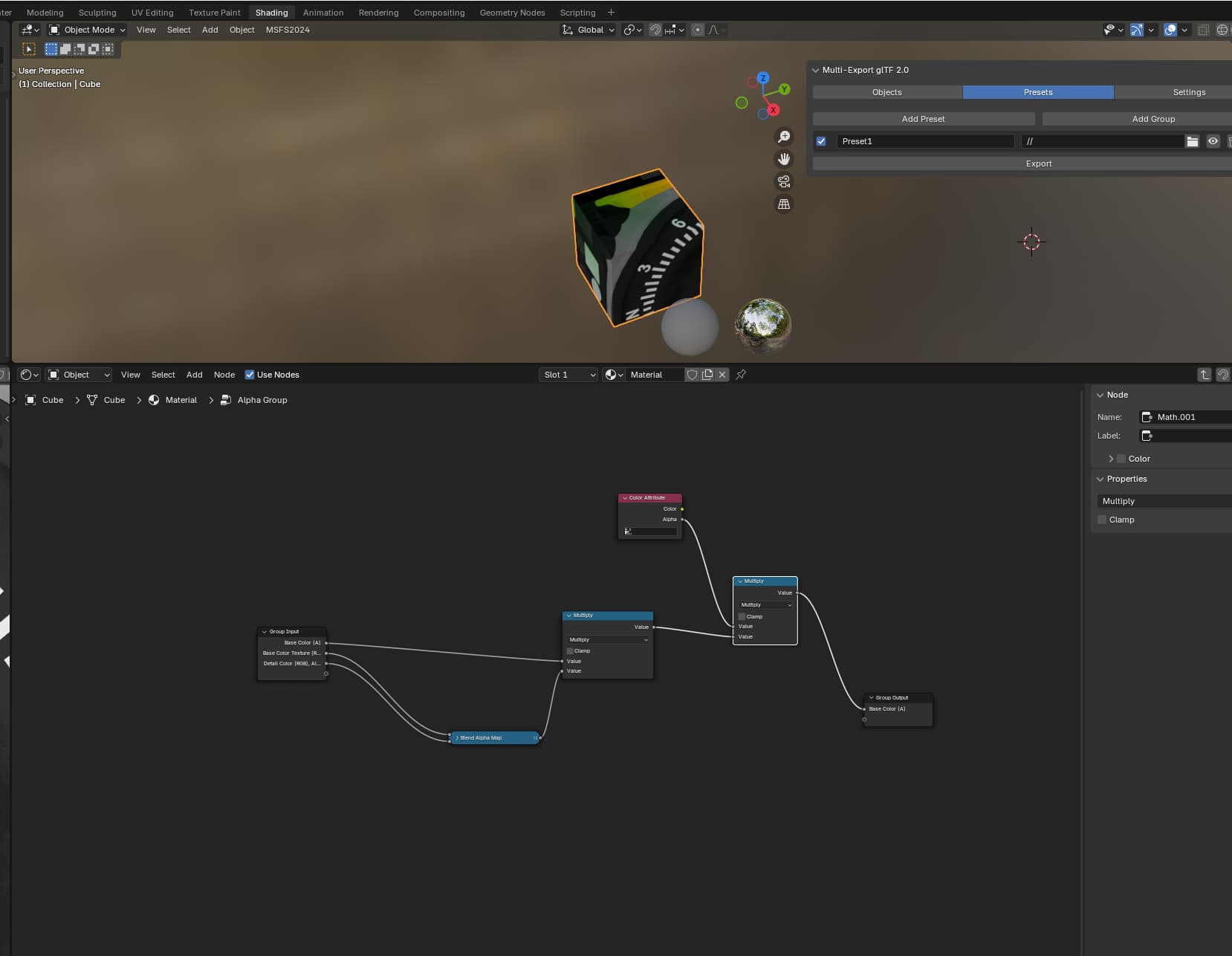

added alpha vertex color node
Repro steps:
Attachments:
Private attachments: Send a PM to @PrivateContent with the link to this topic and the link to download your content
