3ds max 2024 multi-exporter doesn't generate GLTF

[MSFS 2024] Bug Reports SDK: Tools/Samples/Documentation
, ,
1

Version: 3ds max 2024, SDK version 1.2.4

Frequency: Consistently

Severity: Blocker

Marketplace package name: Not published

Bug description: When trying to export our Kodiak 900 using the multi-exporter (3ds max 2024, FS2024 SDK) I am not getting a gltf. The message log indicates “export failed due to empty gltf”, but nothing is generated at all.

I have modified the layers so that the tail part uses the same naming convention across layers, but it still won’t export. If I export through the “hierarchy” tab I get the files.

I have also been able to normally export our Airvan in 2024 without issue, even though it doesn’t follow the layer structure demonstrated in the DA62 sample.

Attachments:

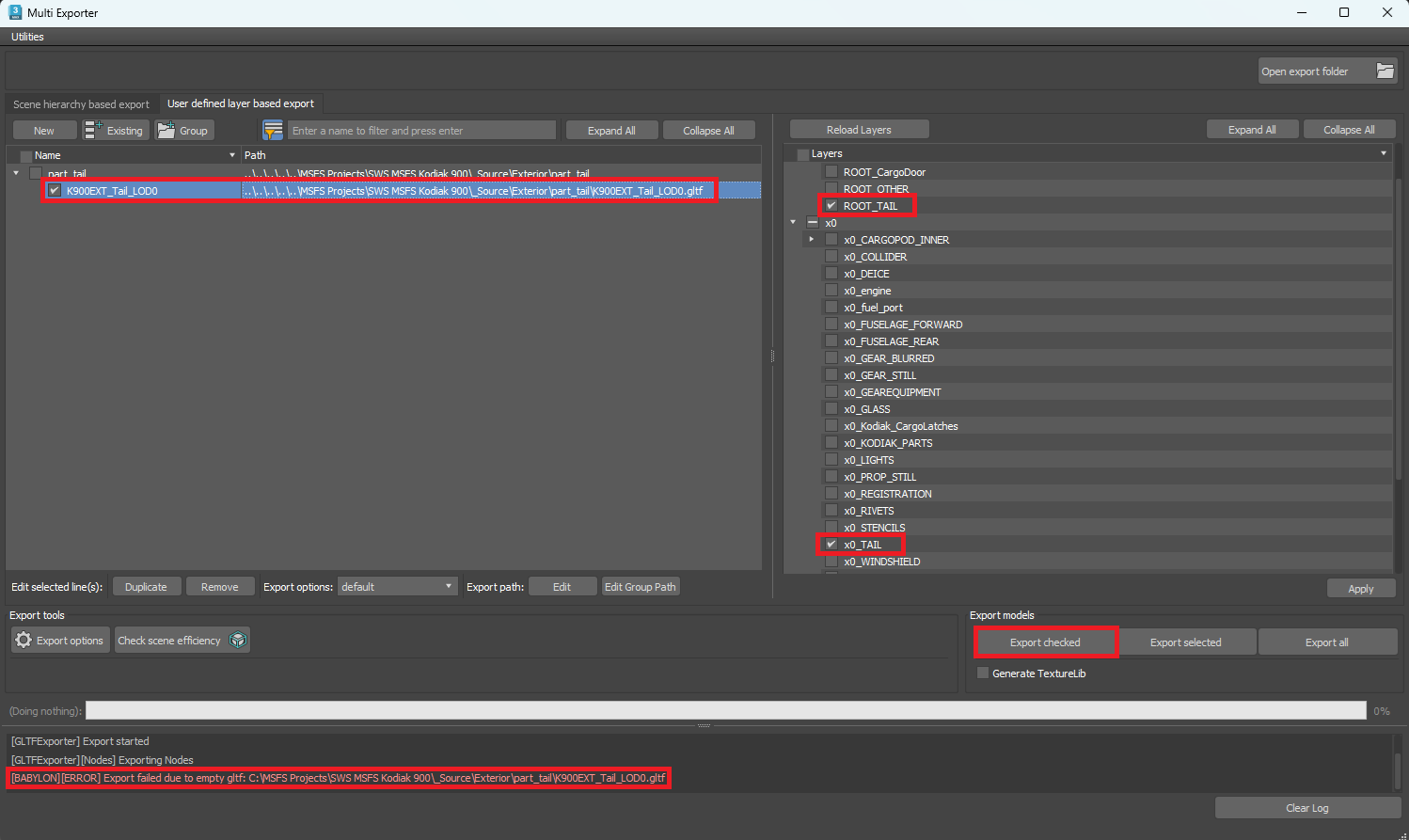

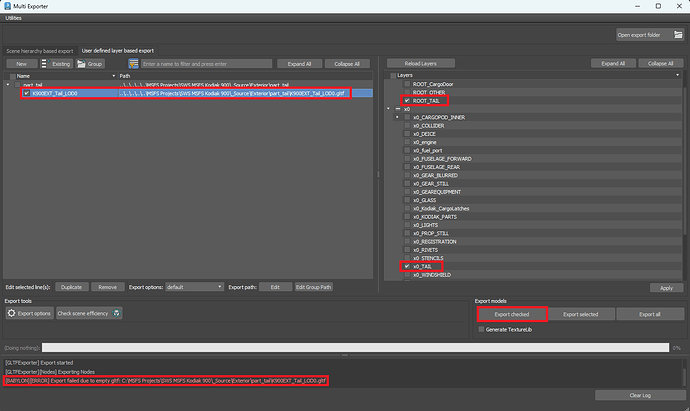

Export window

image1498×893 47.6 KB

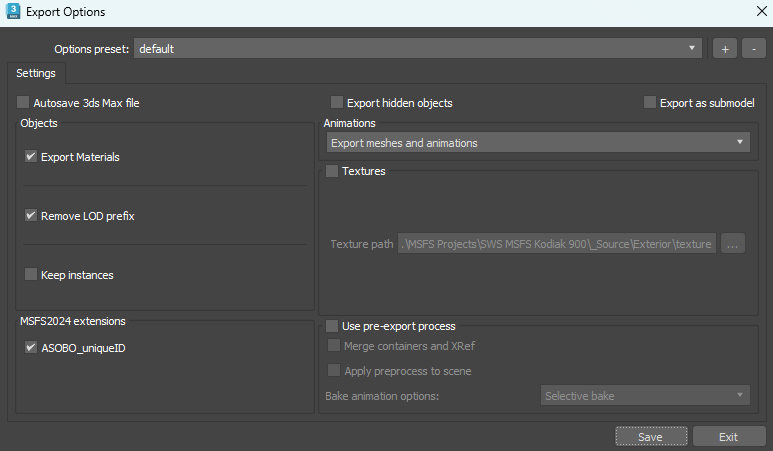

Advanced settings:

image773×451 14.5 KB

UPDATE
When ticking “Export hidden objects” I get a good export. The fact that 3ds max hides the parts I want to export indicates there is a problem with my scene setup. If you can point me in the right direction to fix it it will be great.

2

Hello @SWS-AlexVletsas,

I asked a dev about this, and I’m afraid there’s not much we can do, as it appears to be more of an issue with 3ds Max itself :confused:

Maybe try to see if you have the same issue when using a different max version ?

Regards,
Boris
