Unable to post multiple `K:` events in one go

[MSFS 2024] Bug Reports WASM
1

Hi!

I have a custom built home cockpit panel that I’ve been using successfully with MSFS 2020 and the FlyByWire A320N using MobiFlight to interface with the sim. After upgrading to MSFS 2024, I noticed that I am unable to post multiple K: events to the sim in response to a single button push. For example, I have a single “Fuel Pumps” button in my panel that is supposed to toggle all six fuel pumps on the A320N. The MobiFlight preset code to do this looks something like this:

2 (>K:FUELSYSTEM_PUMP_TOGGLE)
3 (>K:FUELSYSTEM_PUMP_TOGGLE)
4 (>K:FUELSYSTEM_PUMP_TOGGLE)
5 (>K:FUELSYSTEM_PUMP_TOGGLE)
6 (>K:FUELSYSTEM_PUMP_TOGGLE)
7 (>K:FUELSYSTEM_PUMP_TOGGLE)

This works great in 2020, but in 2024 it does nothing at all. However, it works if I try posting just a single event, like so:

2 (>K:FUELSYSTEM_PUMP_TOGGLE)

This correctly toggles one fuel pump. Unfortunately, I have only one button on my panel so I need the ability to post multiple events.

This seems to be a regression from 2020 to 2024. Please let me know if there is any additional information I can provide to help resolve this. Thanks!

1 Like
2

Does mobiflight allow you to insert a pause between the K events? Might be worth a try.

3

Thanks for the tip. In fact, that was my first thought as well but it doesn’t look like MobiFlight has any built-in concept of pauses.

4

This isn’t limited to K events unfortunately; it also happens when triggering B events via RPN.

There’s a hacky way to get a pause inserted in MobiFlight for two events and it does resolve the issue, but due to how hacky it is it’s only possible for two events, not more, and only on button inputs.

The exact same sequence of events in MSFS2020 does not have this issue so it does appear to be a something that broke in 2024.

5

We continue to get reports from users that this impacts them. Anyone from Asobo able to confirm this changed from 2020? Any possibility of fixing it?

6

Hello @SprungHawk28566

Are you able to replicate this issue outside the context of MobiFlight?

For example, adding this component to the Da62 SDK sample does work as expected and every pump are toggled every second.

<Include ModelBehaviorFile="ASOBO\\Generic\\Updates.xml" />
<Component ID="TEST">
	<UseTemplate Name="ASOBO_GT_Update">
		<UPDATE_CODE>
			1 (&gt;K:FUELSYSTEM_PUMP_TOGGLE)
			2 (&gt;K:FUELSYSTEM_PUMP_TOGGLE)
			3 (&gt;K:FUELSYSTEM_PUMP_TOGGLE)
			4 (&gt;K:FUELSYSTEM_PUMP_TOGGLE)
			5 (&gt;K:FUELSYSTEM_PUMP_TOGGLE)
			6 (&gt;K:FUELSYSTEM_PUMP_TOGGLE)
		</UPDATE_CODE>
	</UseTemplate>
</Component>

Regards,
Sylvain

7

The issue occurs when passing the RPN in via an execute_calculator_code() call.

8

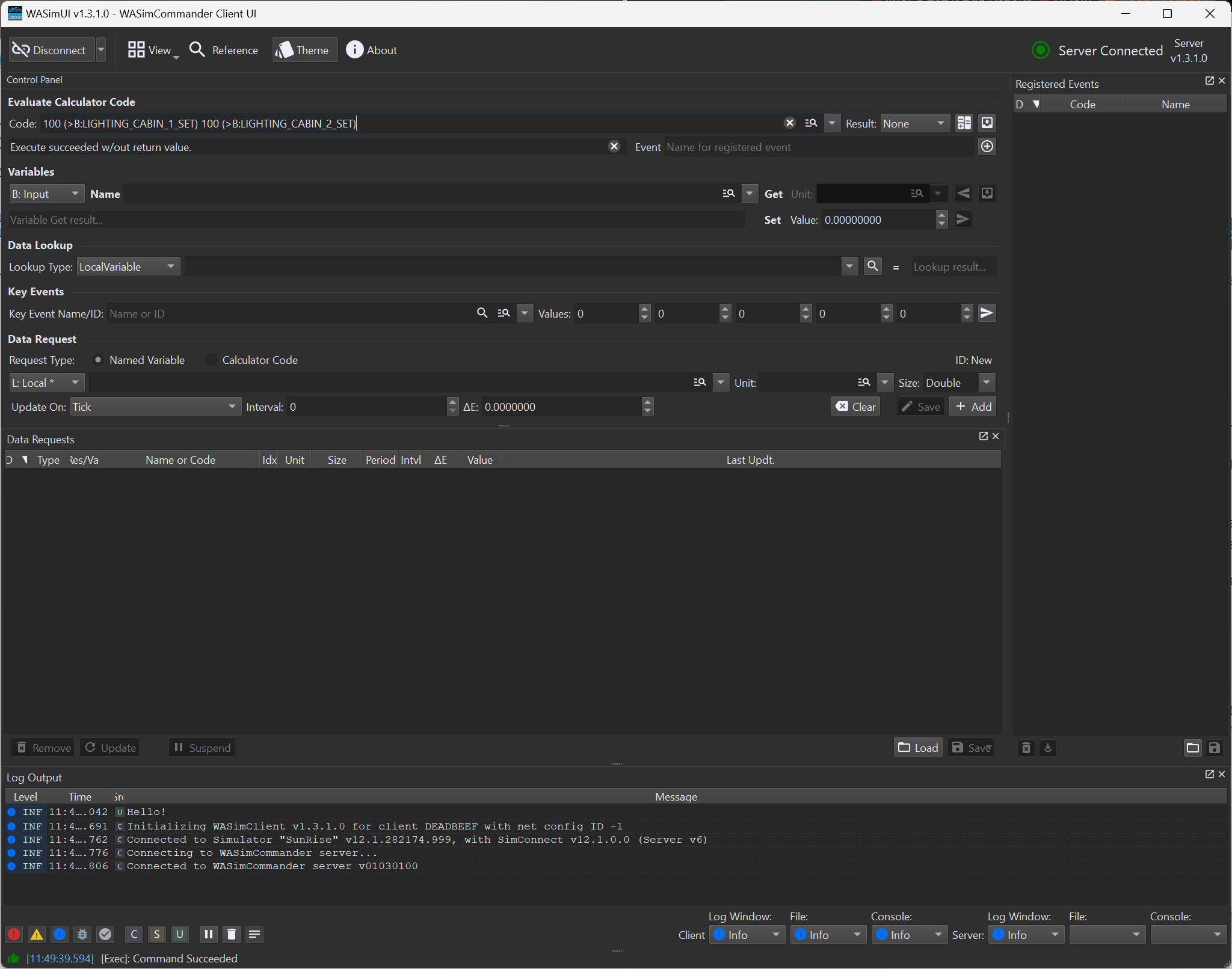

This issue is not specific to MobiFlight. It reproduces when using other external apps that use execute_calculator_code(), for example with WASimCommander.

It’s also not specific to the FBW A320N or K events. Attempting to set the interior cabin light brightness in a C172 using the following code doesn’t work:

100 (>B:LIGHTING_CABIN_1_SET)
100 (>B:LIGHTING_CABIN_2_SET)

image2048×1611 151 KB

The above code causes both knobs to animate, but only one of the two lights turns on. If the two cabin light Bvars are sent separately with some delay between them they work fine.

1 Like
